YH-2 Capsule counting machine
1.Well design structure, easy to maintain and clean.
2.All parts are easy to exchange, including PC boards of control system.
3.All product contact parts are made of SUS 316.
4.Smooth rotary system with computerized counter make high accuracy.
5.Infrared recognize system can recognize the transparent soft gel capsule. Even though after the long time running, It still
6.can penetrates the dust built by the naked tablet.

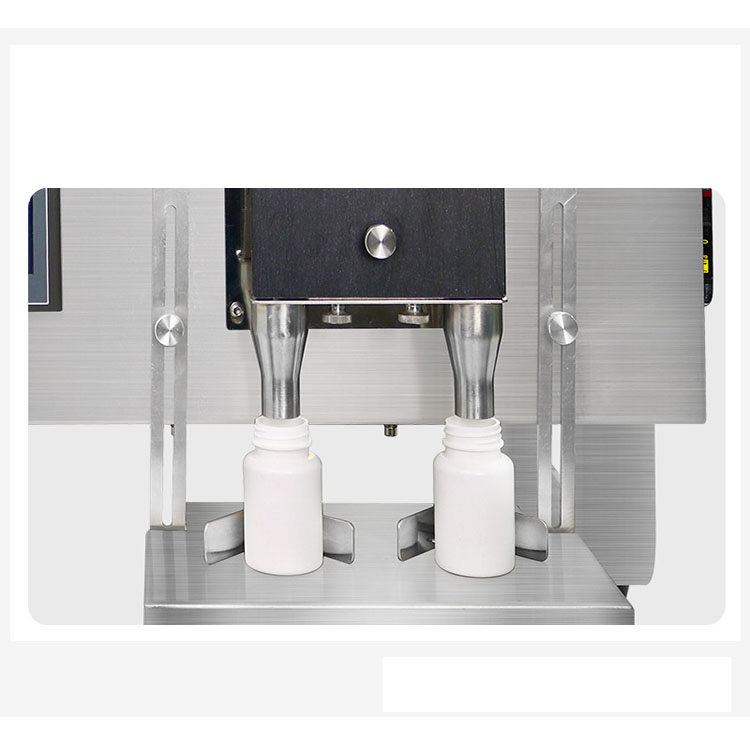

7.One conveyor for bottles transmission with speed variation.
Description
Description
Capsule & Tablet Counting Machine
This machine has been designed and developed to count & fill different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.
The machine can be adjusted to count capsules or tablets between 1-9999 pcs per bottle without changing spare parts.
Applications
Features:
a. The number of capsules counted can be set up among 0~9999.
b. Material: Stainless steel material for whole body in accordant with GMP specification.
c. Easy to operate and no special training required.
d. Precision pellet count with special electrical eye protection device.
e. Rotary counting design with fast and smooth operation.
f. The rotary pellet counting speed can be adjusted with automatic speed regulationaccording to the bottle putting speed manually.
g. The interior of the machine is equipped with dust cleaner to avoid the dust effect on the machine.

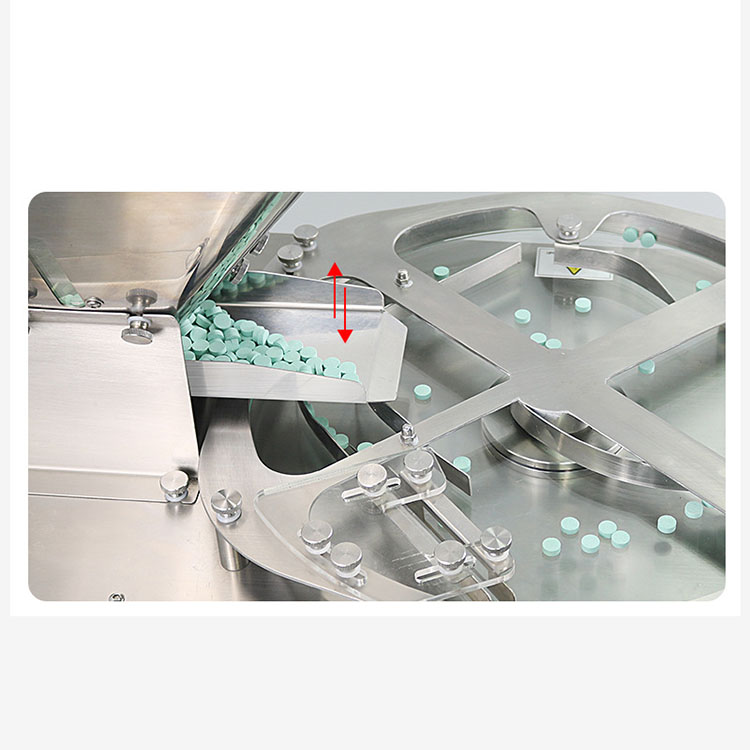

h. Vibration feeding design, the vibration frequency of the pellet hopper can be adjusted with automatic speed regulation based on the needs of the pellet carried.
Technical Specifications
| Type | YH-2A | YH-2 | YH-4 |
| Size of medicament | Tablet:φ5~15mm Capsule: 00#~5# | Tablet:φ5~15mm Capsule: 00#~ 5# | Tablet:φ5~15mm Capsule: 00#~5# |
| Capacity | 500-1500 tablet capsules/min | 1000-1800 tablet capsules/min | 2000-3500 tablet capsules/min |
| Size of Bottles | 20-300ml | 20-300ml | 20-300ml |
| Total power | 0.35kw | 0.55kw | 0.85kw |
| Power supply | AC100-220V 50HZ-60HZ | AC100-220V 50HZ-60HZ | AC100-220V 50HZ-60HZ |
| Dimension(W*D*H) | 427x327x525 mm | 760*660*700mm | 920x750x810mm |
| Weight | 35kg | 50kg | 85kg |
1.16 years professional pharmaceutical machinery manufacturer and supplier.
2.3 Years Warranty, 14 Days Delivery, Factory Price.
3.5680 ㎡ factory, Own R&D Team.
4.Free desian service, free professional solutions.
5.Accept the non-standard customized products.
6.Passed Iso 9001. CE. sGs. Intetek certificates.
Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.
Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.
Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.
Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.
Our certificate
1. What about your Pharmaceutical machine quality?
Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.
2. What about your Pharmaceutical machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?
1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side or by video.
