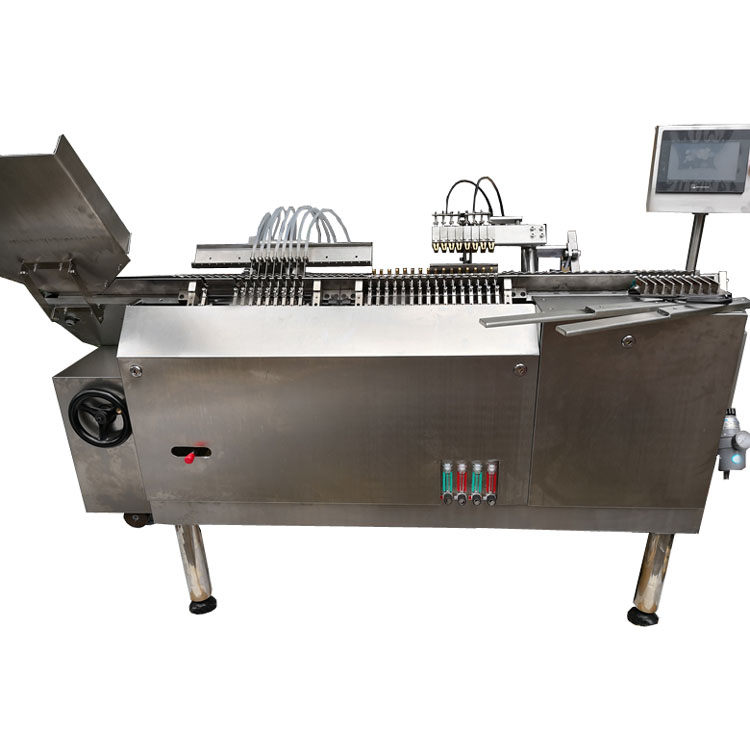

AGL-8 Automatic ampoule sealing and filling machine
| Place of Origin: | China |
| Brand Name: | YH |
| Model Number: | AGL-8 |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Price: | To be rediscussed |
| Packaging Details: | Export plywood box |
| Delivery Time: | 10 working days, depends on the order quantity |
| Payment Terms: | T/T,Western Union,Moneygram,Paypal |
| Supply Ability: | 50 sets per month |
Description
Description

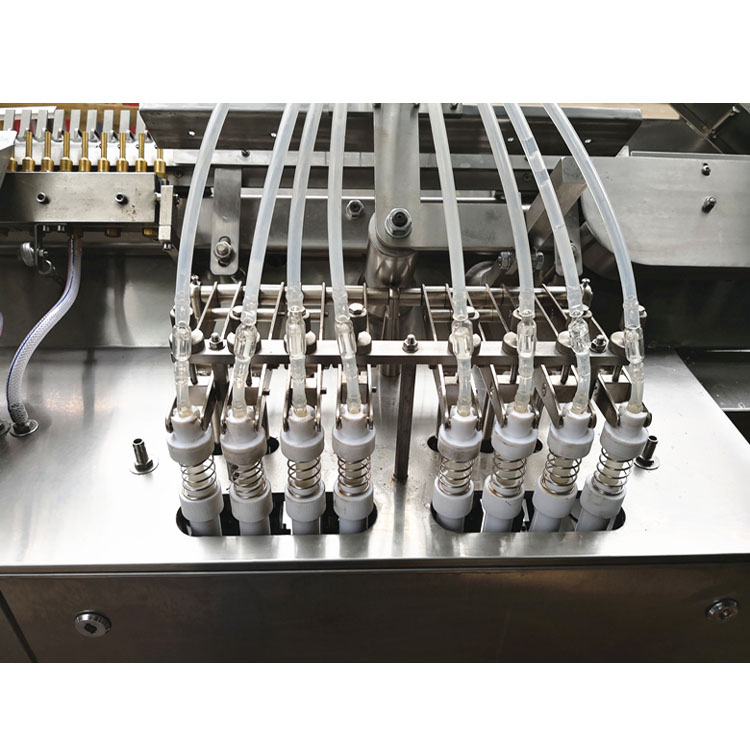

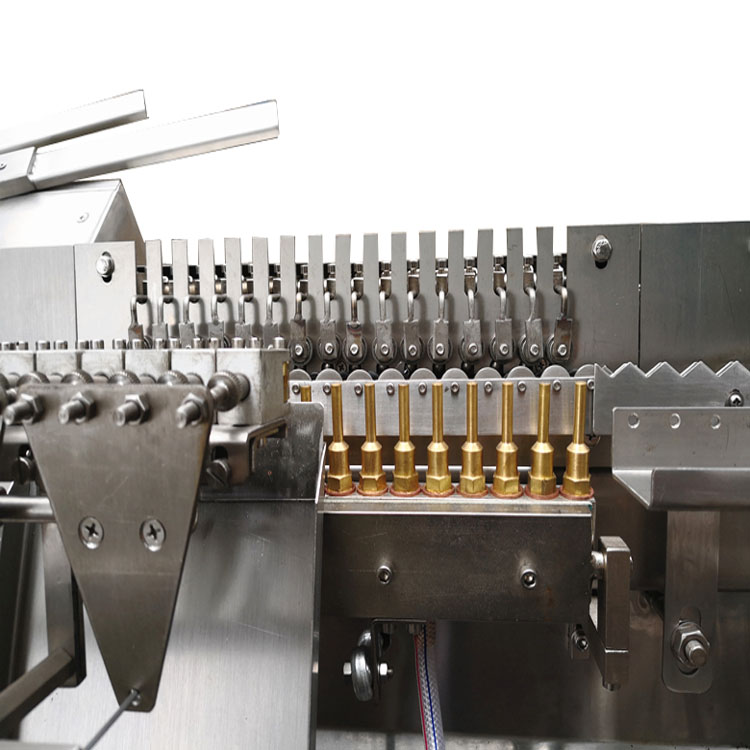

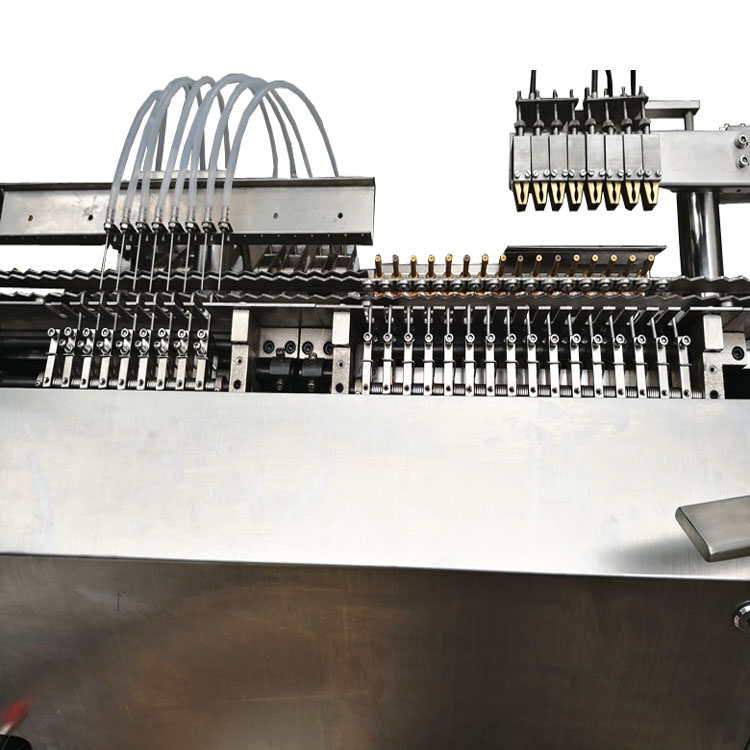

● This AGL-8 automatic ampoule sealing and filling machine is a 8-station stepping transmission system, each taking 8 bottles as a group, sent to each process point, completing the nitrogen filling、filling、 post-nitrogen filling、preheating、drawing and sealing.
Applications
● AGL series ampoule filling and sealing machine is suitable for filling and sealing the ampoule filling liquid in the pharmaceutical and chemical industries. The piston metering pump is used for quantitative filling, and the bottle can automatically stop the filling when there is no bottle. The gas can use gas、liquefied natural gas or liquefied petroleum gas. The machine is eight-nozzle type, compact in structure, stable and reliable in operation, convenient in adjustment and operation, and complete in function.
Competitive Advantage
Technical Specifications
| Automatic ampoule sealing and filling machine | |
| Ampoule Volume | 1-2ml |
| Production Capacity（Bottle/Hour） | 16000-18000 |
| Power/Voltage/Frequency | 0.55kw380V50Hz |
| Gas Selection | Liquefied Petroleum Gas or Gas, Acetylene Gas |
| Fuel and Dosage | Pipeline gas 3-4m3 / h, 0.08-0.1Mpa (LPG)； |
| Combustion agent and dosage | Oxygen 1m3 / h, 0.1Mpa； |
| Size | 1850 * 900 * 1500mm； |
| Weight | 450kg |

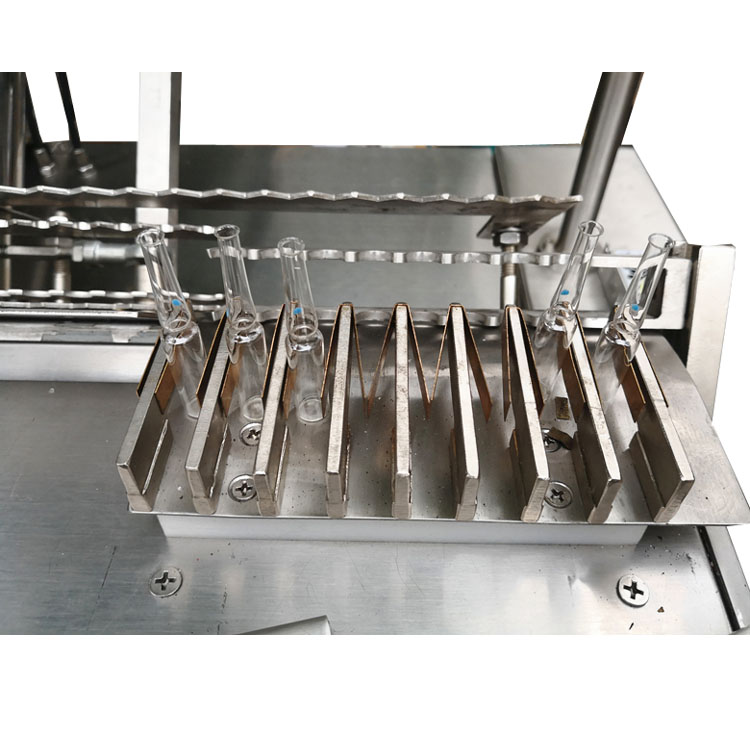

Ampoule size (Unit:mm)
| Specification | Bottle diameter | Total height of the ampoule | Bottle mouth outer diameter | Bottle height |
| 1ml | 10±0.26 | 60 | 5 | 21 |
| 2ml | 11.5±0.26 | 70 | 5.5 | 32 |
| 5ml | 16±0.30 | 87 | 6 | 38.5 |
| 10ml | 18.4±0.35 | 102 | 6.8 | 53.5 |
| 20ml | 22±0.35 | 126 | 7.3 | 68 |
1.16 years professional pharmaceutical machinery manufacturer and supplier.
2.3 Years Warranty, 14 Days Delivery, Factory Price.
3.5680 ㎡ factory, Own R&D Team.
4.Free desian service, free professional solutions.
5.Accept the non-standard customized products.
6.Passed Iso 9001. CE. sGs. Intetek certificates.
Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.
Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.
Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.
Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.
Our certificate
1. What about your Pharmaceutical machine quality?
Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.
2. What about your Pharmaceutical machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?
1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side or by video.
