Paste Ketchup Jam Butter Honey Chocolate Cream blister packing machine
1.Application: Blister packing for ketchup, jam, butter, honey,chocolate ,cream etc
2.Packing material:PVC/PET/PS for forming, alu foil, paper film and composite film for sealing
3.Machine feature: Small and compact in size, suitable for lab use and small scale production
4.Maximum packing material width: 110MM
Description
Product Description

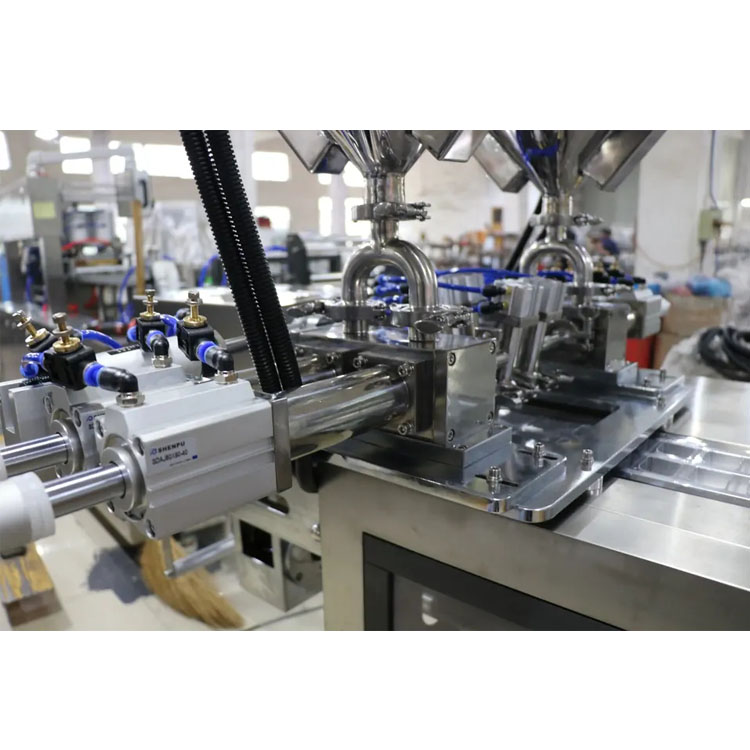

This machine is a small mini paste, ketchup, jam, butter, honey,chocolate ,cream blister packing machine, which is to fill and pack the small volume mono dose food or cosmetic blister package.

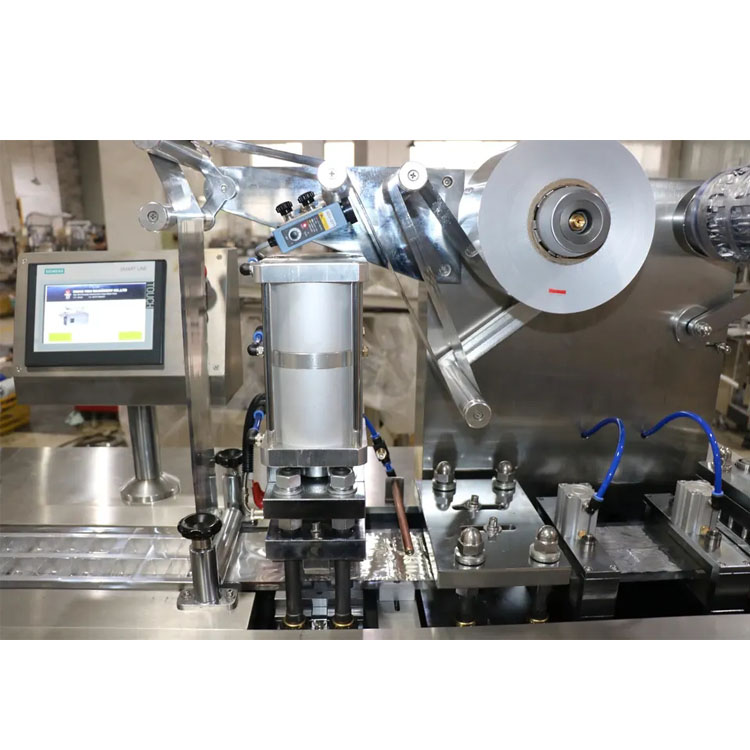

1) The Blister packing machine body adopts guide track structure, the moulds such as forming, heat sealing, punching can be adjusted freely on the guide track. It is suitable for different sizes of plates, easy to adjust, good adaptability and high accuracy.
2) Mechanism hands for traction, stroke adjustable, easy operation, stable running.
3) With parallel axes bevel gears reducer, avoid loosen or slippage caused by chain or belt.
4) Mould is located by pin, easy to change mould.
5) Frequency converter speed change, punch frequency 6-35 adjustable
6) Adjustable operation panel, suitable for different plates, easy to operate.
7) It can equipped with PLC, touch screen, high automization,photoelectronic registration, localize heat seal, automatic error compensation.
8) Aluminum foil reel adopts stable device, cancelled the affection of pull force change with the ALU foil reel gradually diminish, thus it plays a great role in synchronization.
9) The up and low moulds for heat sealing mate each other completely, with multi level cylinder compressing heat sealing, the net pattern show clearly, firm, and reach 100% seal.
Working process:

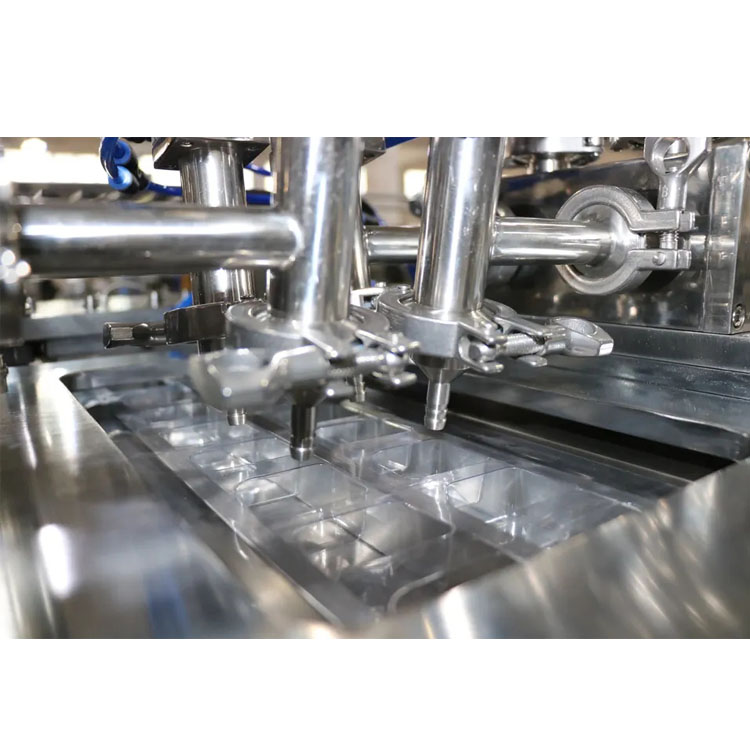

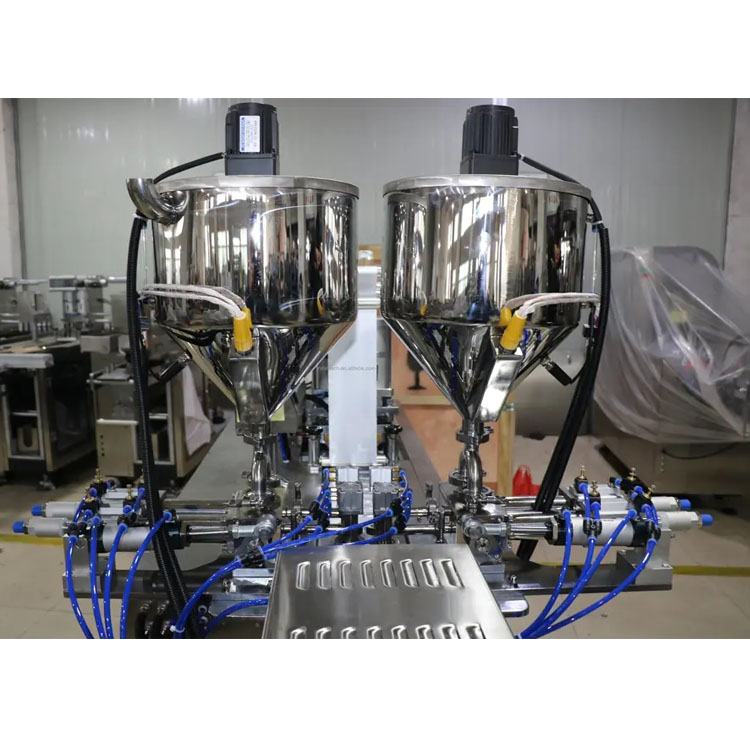

Film feeding, Blister forming, liquid filling, impressing, batch number printing and cutting is accomplished automatically.
Applications

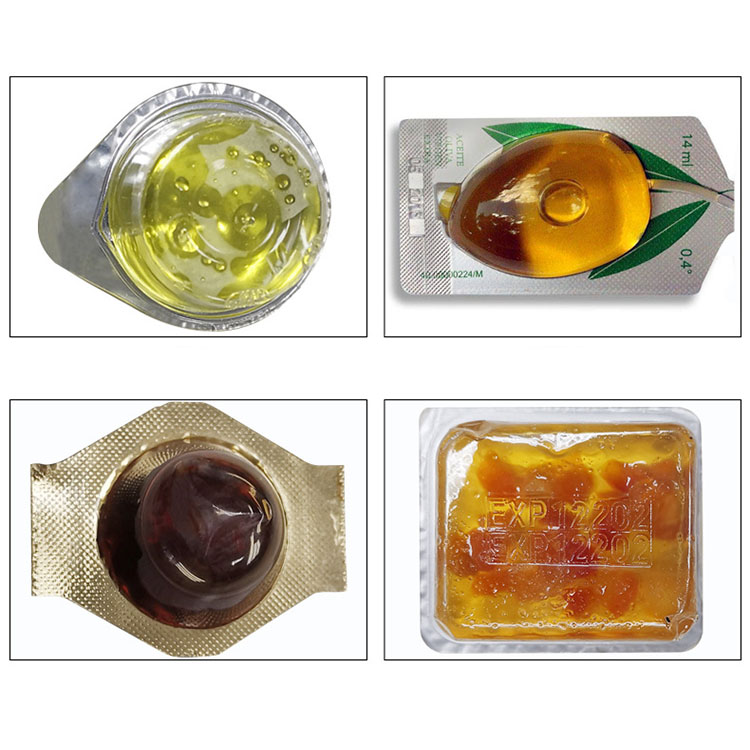

This Automatic Blister packing machine, widely used for plastic blister package of various honey, juice liquid, butter, sauce, butter, cosmetic cream, ketchup, pesticide, medical oil, liquid detergent, pesticide etc.
Technical Specifications
Model | DPP-80 | DPP-140 | DPP-250 | |
Cutting frequency(times/min) | 10-40 | 6-50 | 6-50 | |
Max Forming area and depth(mm) | 80x110x26 | 130x130x26 | 240x150x26 | |
Travel range(mm) | 20-80 | 40-140 | 40-160 | |
Capacity of air compressor((m3/min) ) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | |
Power supply | 380V/220V 3.5Kw | 380V/220V 3.6Kw | 380V/220V 6.2Kw | |
Main motor power(Kw) | 0.55 | 0.75 | 1.5 | |
Packing material(mm) Roll | PVC | (0.25-0.5)*120 | (0.25-0.5)*140 | (0.25-0.5)*250 |
Aluminum foil | (0.02-0.035)*120 | (0.02-0.035)*140 | (0.02-0.035)*250 | |
Dialysis paper | (50-100g)x120 | (50-100g)x140 | (50-100g)x250 | |
Paper card | <400gx120 | <400gx140 | <400gx250 | |
Mould cooling | Tap water,circulating water or water chiller | Tap water,circulating water or water chiller | Tap water,circulating water or water chiller | |
Overall dimensions(mm) | 1600x460x950 | 2300x560x1410 | 3000x730x1600 | |
Weight(Kg) | 450 | 750 | 1600 | |
1.16 years professional pharmaceutical machinery manufacturer and supplier.
2.3 Years Warranty, 14 Days Delivery, Factory Price.

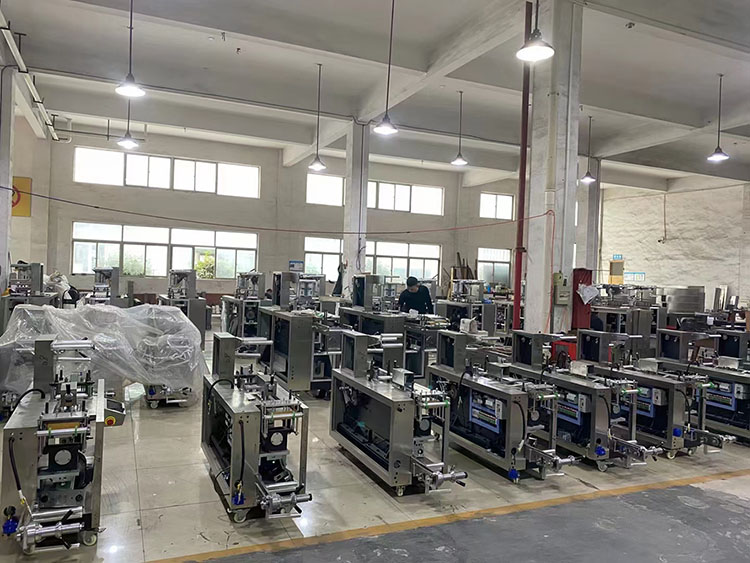

3.5680 ㎡ factory, Own R&D Team.
4.Free desian service, free professional solutions.
5.Accept the non-standard customized products.
6.Passed Iso 9001. CE. sGs. Intetek certificates.
Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.
Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.
Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.
Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.
Our certificate
1. What about your Pharmaceutical machine quality?
Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.
2. What about your Pharmaceutical machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?
1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side or by video.
