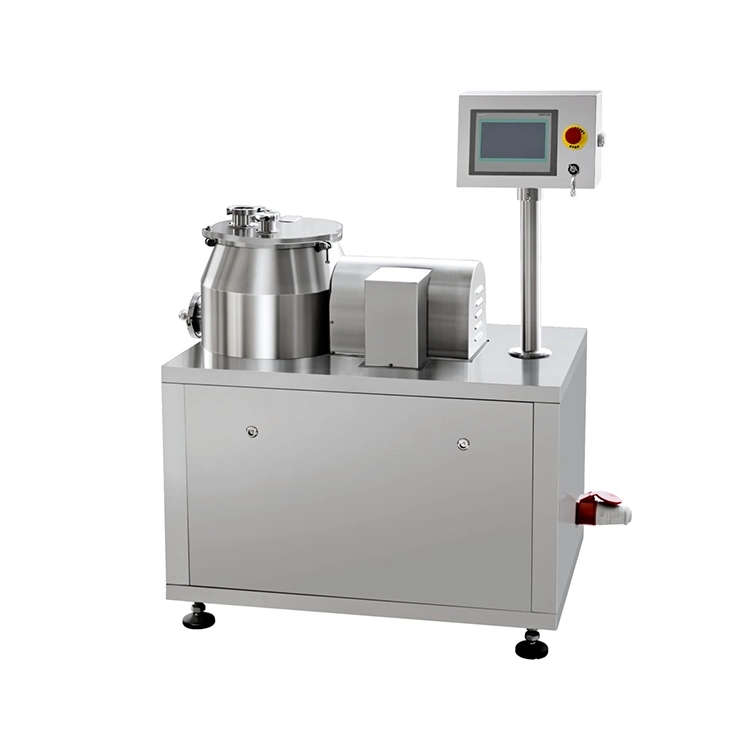

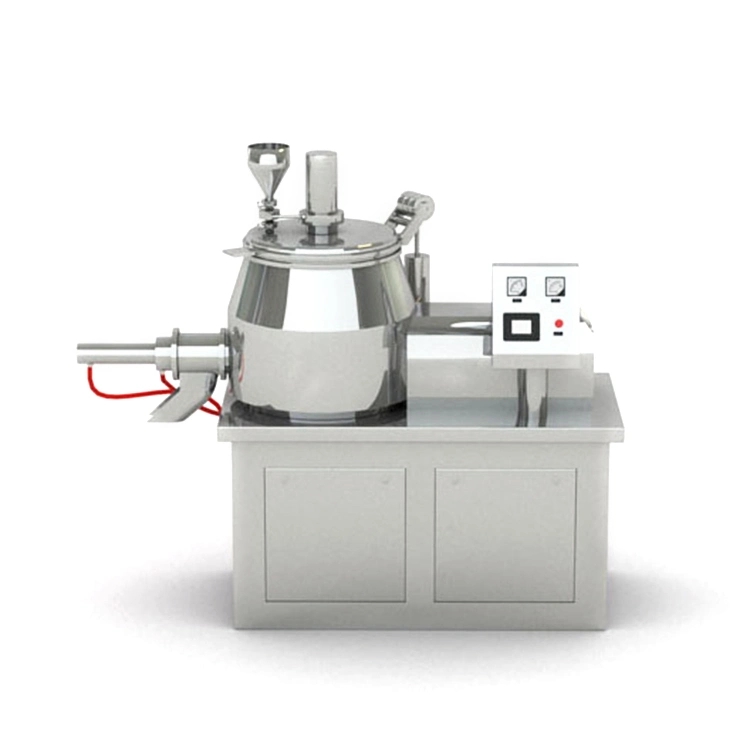

GHL-10 High Speed Wet Mixer and Granulator
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
● Video Outgoing-Inspection
● Professional After-Sales Service
Description
Description
GHL high speed mixer granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry, etc.
Working Principles:
In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smashed paddles
Purpose:
The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.
Applications
Features of equipment
1.The machine adopts horizontal barrel(cone)structure. Its structure is reasonable.
2.The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
3.Short granulating time, high efficiency and energy saving.
4.The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material to tablet pressing procedure.
5.Compared with traditional process, it can reduce 25% of binder and shorten drying time too.
6.Each bath needs 2 minutes to dry mixing and 1~4 minutes to granulating. Compared with traditional process, its efficiency can raise 4~5 times.
7.Whole operation has strict safe protective measures.
8.It can mix uniformly even when the gravity difference between main material and excipient is very big, without the phenomenon of delamination.
Working Principle
The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotoThe principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.
Technical Specifications
| Volume | 10L |
| Working capacity | 2-6L |
| Output | 1-3kgs/batch |
| Operating time | Mixing:2min Granulation:7-14min/batch |
| Size of the finished granule | Φ0.14-Φ1.5mm(12mesh-100mesh) |
| Mixing Speed | 50-500rpm |
| Mixing power | 2.2kw |
| Granulation Speed | 50-3000rpm |
| Granulation power | 0.75kw |
| Air compressor | 0.2m³ (prepared by buyer) |
| Inlet of cooling water and compressed air | Φ10mm |
| Dimension | 1280×530×1320mm |
1.16 years professional pharmaceutical machinery manufacturer and supplier.
2.3 Years Warranty, 14 Days Delivery, Factory Price.
3.5680 ㎡ factory, Own R&D Team.
4.Free design service, free professional solutions.
5.Accept the non-standard customized products.
6.Passed Iso 9001. CE. sGs. Intetek certificates.
Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.
Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.
Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.
Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.
Our certificate
1. What about your Pharmaceutical machine quality?
Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.
2. What about your Pharmaceutical machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?
1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side or by video.
