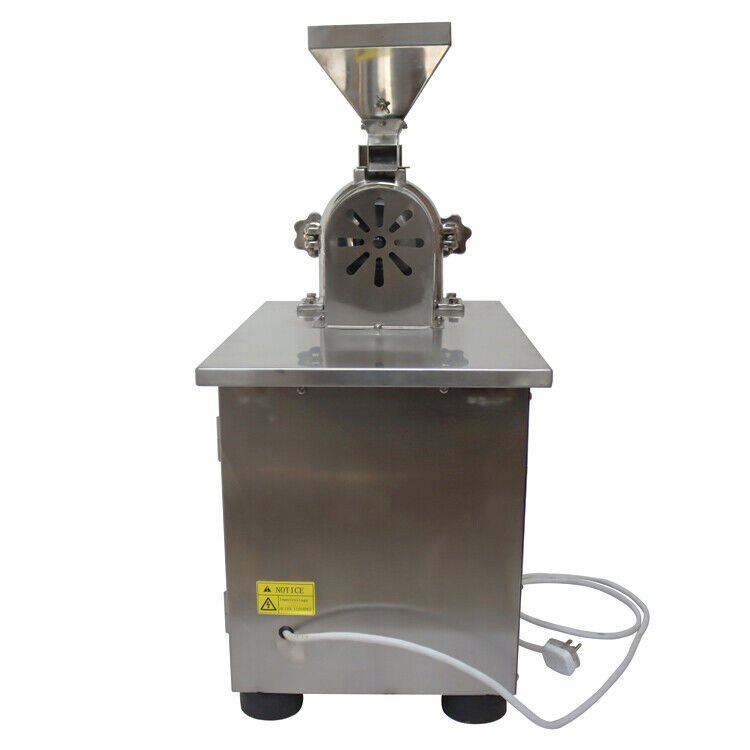

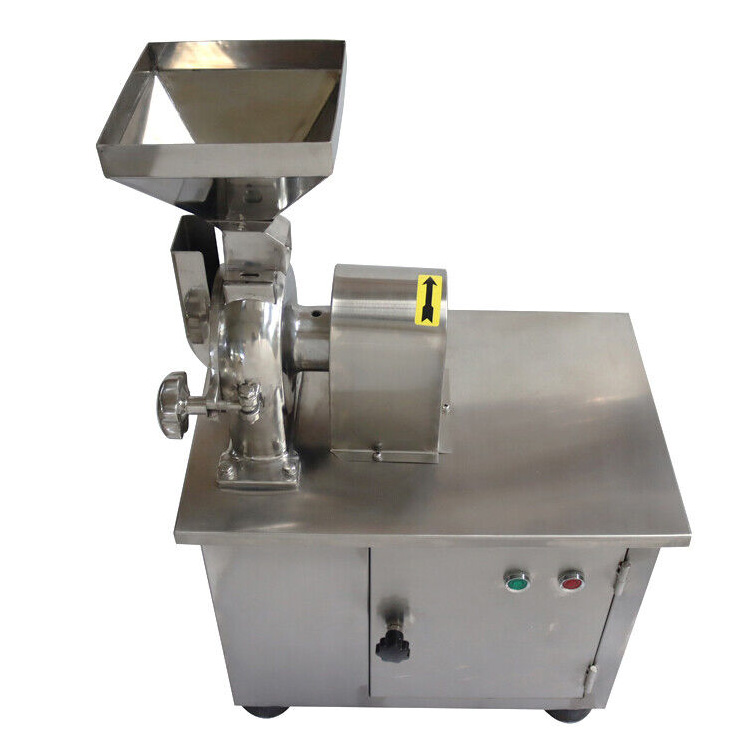

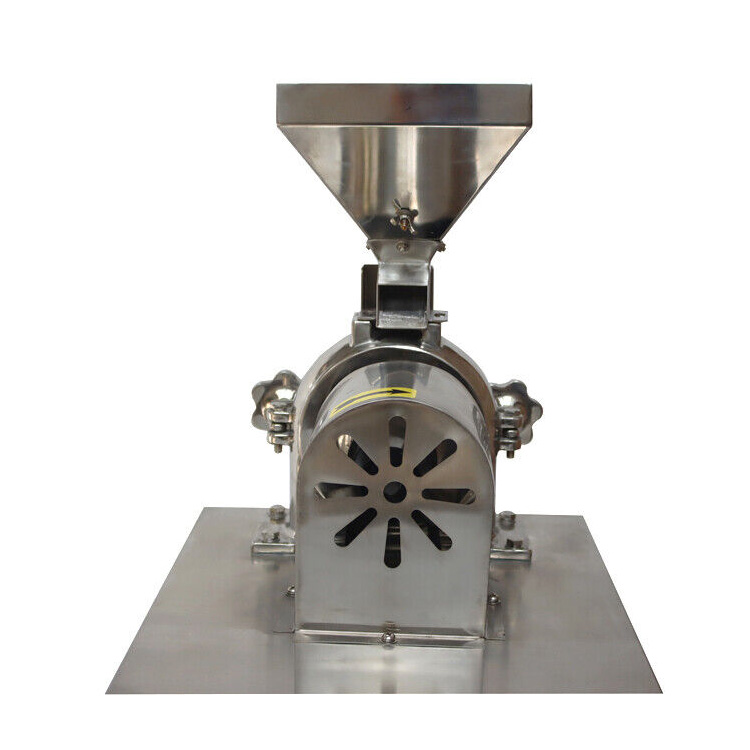

SF-130B grinder machine
1.The machine is elaborately made of high quality austenitic stainless steel. The crushing cavity is flat and smooth without powder accumulation.
2.There is no dust during production. The machine has such features as simple and solid structure, stable running, easy cleaning and good crushing effect.

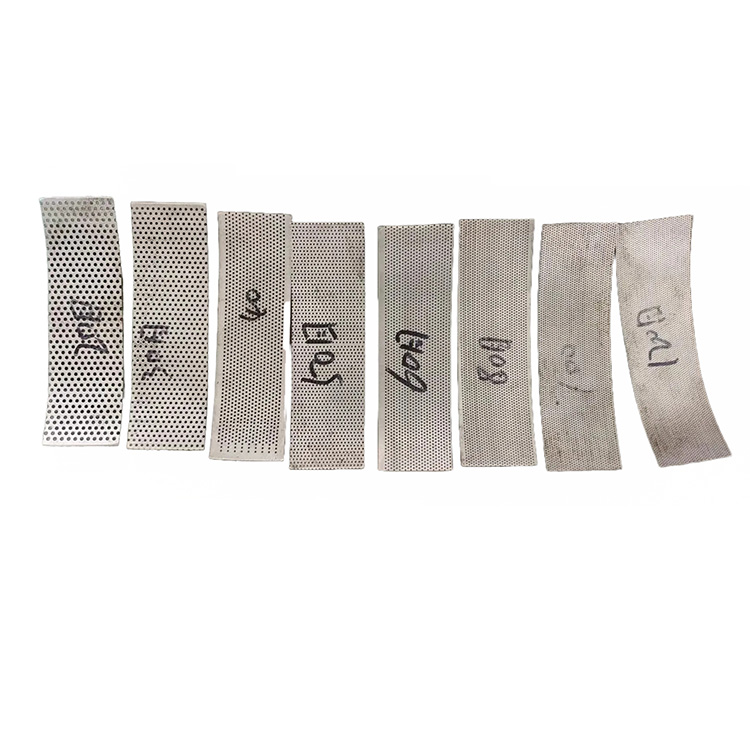

3.The crushed materials can be discharged directly from the machine grinding cavity, The granule size can be obtained by changing mesh screens of different bore diameters, and it is convenient to change the mesh screen.
4.The machine has no dead corner of sanitation and is easy to clean and maintain, meeting GMP requirements.
Description
Description
This grinding machine used the relative motion between movable and fixed teeth disc, the raw materials to be crushed undertakes the comprehensive actions, such as impacted by teeth, friction, impacted between raw materials, finally, the raw materials to be crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency, The crushed raw materials can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh. Its inner wall is processed finely. So it is smooth and level. It overcame the shortcomings exited in the old machines such as roughness, accumulated powder in the old machines such as roughness,accumulated powder. The machine made of good quality stainless steel, meet GMP standard.
Applications
This spice/ herb grinding machine has wide application and widely used for pharmaceutical industry, chemical industry,pesticide industry,foodstuff industry etc.
Working Principle
The electrical motor of the grinderdrives the main shaft to rotate at a high speed and spin off the material into the grinder, The material is ground between the moving plate and the fixed plate by striking, shearing and grinding, The ground material is carried by the air flow through the screen to the collecting bag. The size of the particle can beadjusted by changing the screen with different screen holes.
Technical Specifications
| Model | SF-130B | SF-180B | SF-250B | SF-320B | SF-800B |
| Production capacity(kg/h) | 2-5 | 10-20 | 50-250 | 80-300 | 160-800 |
| Spindle rotation speed (r/min) | 7000 | 4000 | 3800 | 3800 | 3400 |
| Feeding size (mm) | 5*5*5 | 8*8*8 | 10*10*10 | 10*10*10 | 10*10*10 |
| Crushing fineness (mesh) | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
| Crushing motor (kw) | 1.1 | 2.2 | 5.5 | 7.5 | 11 |
| Dust collecting motor (kw) | 0.25 | 0.55 | 0.75 | 0.75 | 1.5 |
| Outline dimensions (mm) | 640*350*830 | 800*530*1230 | 950*500*1360 | 1330*790*1540 | 1350*700*1700 |
1.16 years professional pharmaceutical machinery manufacturer and supplier.
2.3 Years Warranty, 14 Days Delivery, Factory Price.
3.5680 ㎡ factory, Own R&D Team.
4.Free design service, free professional solutions.
5.Accept the non-standard customized products.
6.Passed Iso 9001. CE. sGs. Intetek certificates.
Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.
Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.
Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.
Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.
Our certificate
1. What about your Pharmaceutical machine quality?
Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.
2. What about your Pharmaceutical machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?
1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side or by video.
