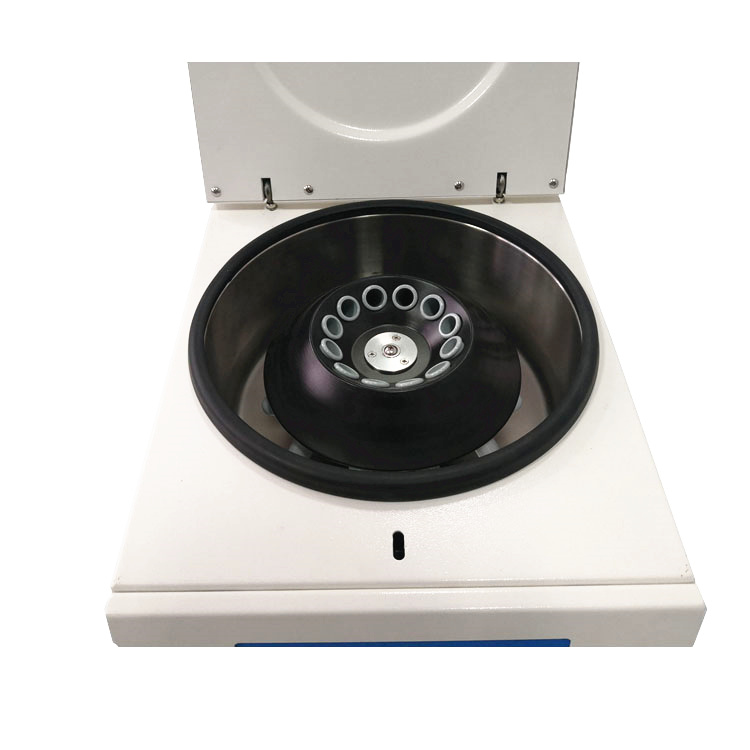

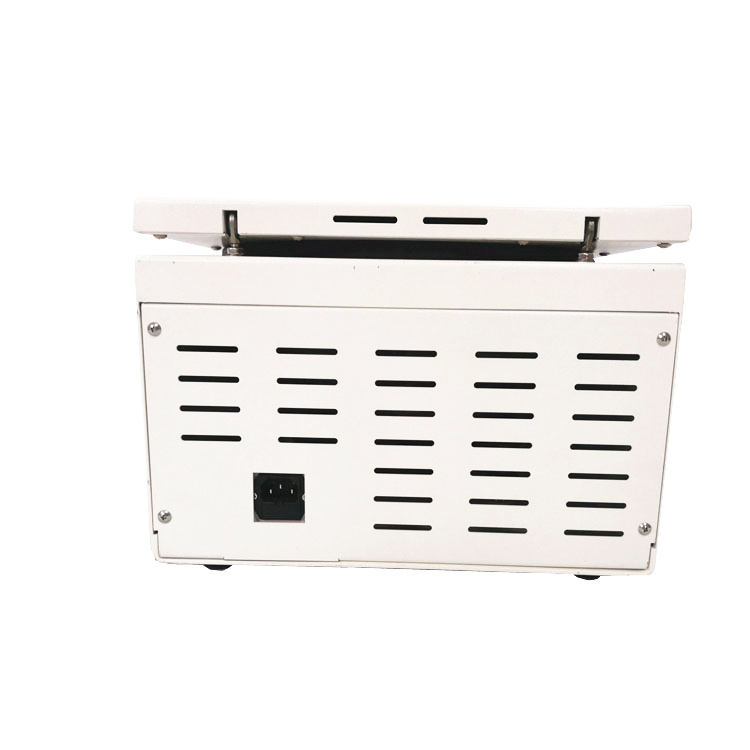

TDZ4-WS Desktop low speed centrifuge
| Place of Origin: | China |
| Brand Name: | YH |
| Model Number: | TDZ4-WS |
| Certification: | / |
| Minimum Order Quantity: | 1 |
| Price: | To be rediscussed |
| Packaging Details: | Standard export plywood box |
| Delivery Time: | 2-10 working days, depends on the order quantity |
| Payment Terms: | T/T,Western Union,Moneygram,Paypal |
| Supply Ability: | 300 sets per month |
Description
Description
● Microcomputer control、 digital display、full touch panel、brushless motor、 automatic balance、 electronic door lock.
● Large capacity, low noise during operation, small temperature rise in centrifuge chamber, widely used in clinical science、biochemistry、food、environmental protection etc., conventional instruments used in the laboratory for centrifugal sedimentation.
Applications
● TDZ4-WS benchtop low-speed automatic balancing centrifuge can be widely used in clinical medicine、 biochemistry、 immunology, etc. It is a routine instrument used in centrifugal sedimentation in the laboratory.
Competitive Advantage
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
● Video Outgoing-Inspection
● Professional After-Sales Service
Technical Specifications
| Maximum speed | 4000r/min |
| Maximum relative centrifugal force | 2600xg |
| Motor | brushless motor |
| Control method | microcomputer control |
| Timing range | 0~99min |
| Machine noise | ≤55dB |
| Power supply | AC 220V 50Hz 5A |
| Weight | 22kg |
| Dimensions | 465 × 350 × 260mm |

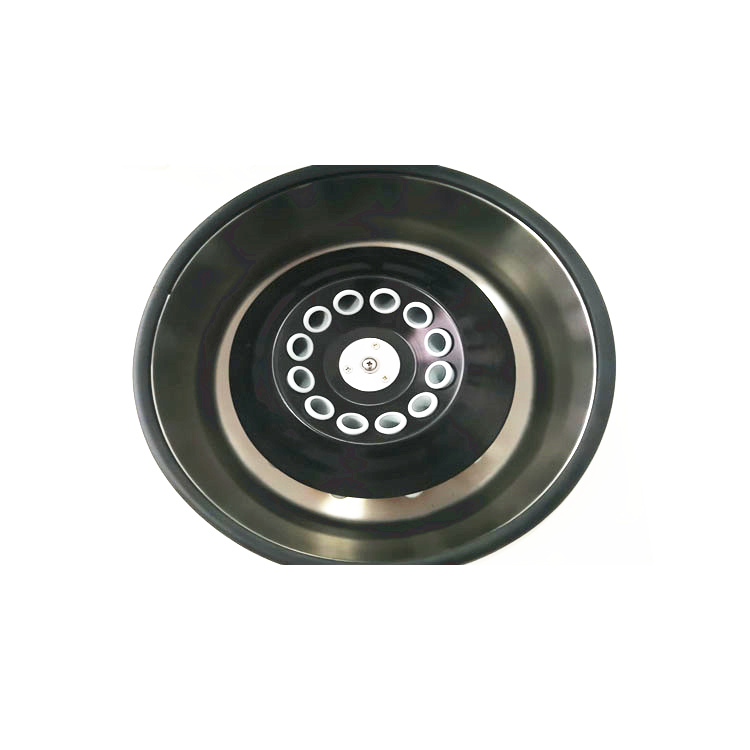

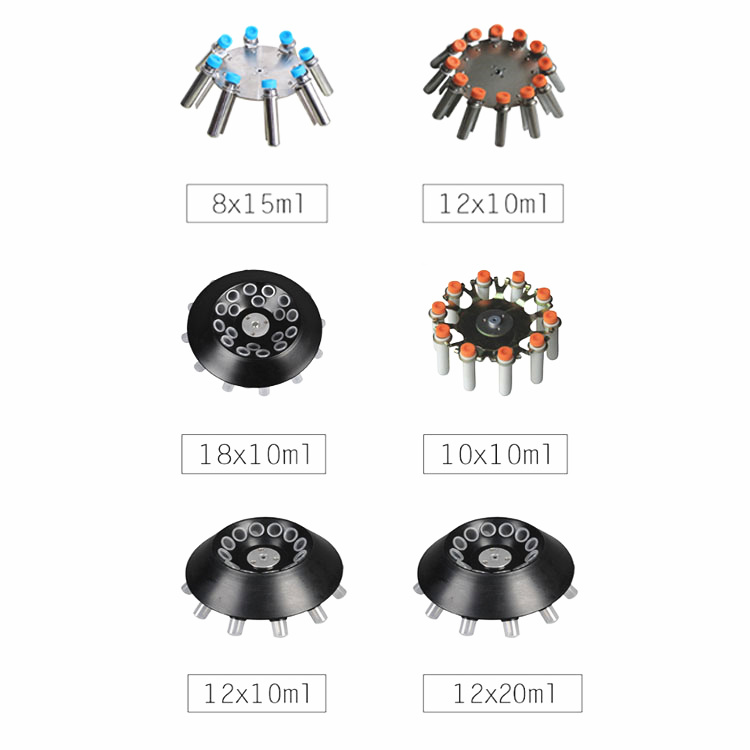

Configuration rotor parameter table: (the ones marked with √ in the table are the free rotors with the current centrifuge)
| Rotor model | Maximum speed | Maximum capacity | Maximum centrifugal force | Remarks |
| NO.1 angle rotor | 4000r/min | 12×10ml | 2095×g | √ |
| NO.2 angle rotor | 4000r/min | 12×20ml/15ml | 2220×g | |
| NO.3 angle rotor | 4000r/min | 18×10ml | 2240×g | |
| NO.4 horizontal rotor | 4000r/min | 8×15ml | 2690×g | |
| NO.5 horizontal rotor | 4000r/min | 4×50ml | 2420×g | |
| NO.6 horizontal rotor | 4000r/min | 12×10ml | 2600×g | |
| NO.7 horizontal rotor | 4000r/min | 10×10ml | 2500×g |
1.16 years professional pharmaceutical machinery manufacturer and supplier.
2.3 Years Warranty, 14 Days Delivery, Factory Price.
3.5680 ㎡ factory, Own R&D Team.
4.Free design service, free professional solutions.
5.Accept the non-standard customized products.
6.Passed Iso 9001. CE. sGs. Intetek certificates.
Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.
Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.
Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.
Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.
Our certificate
1. What about your Pharmaceutical machine quality?
Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.
2. What about your Pharmaceutical machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?
1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side or by video.
