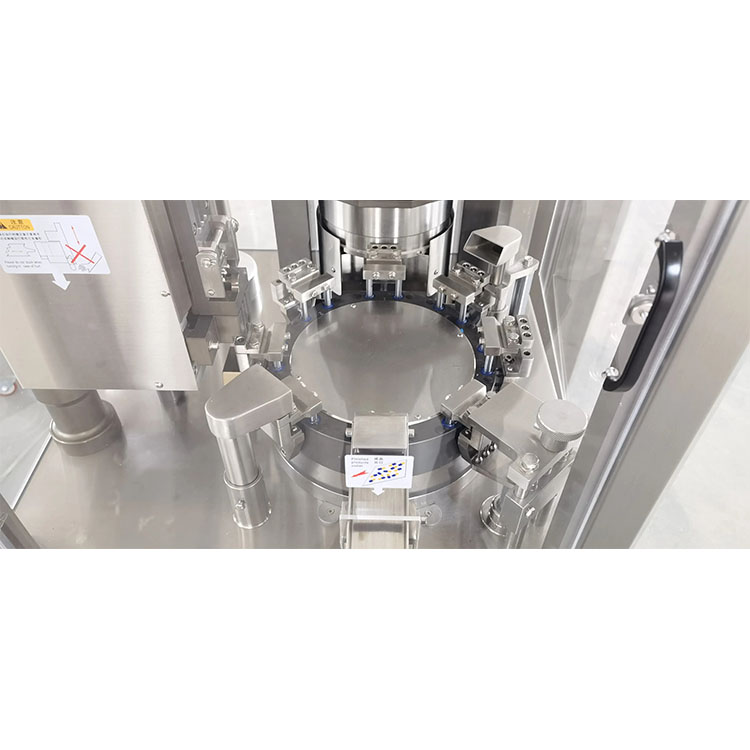

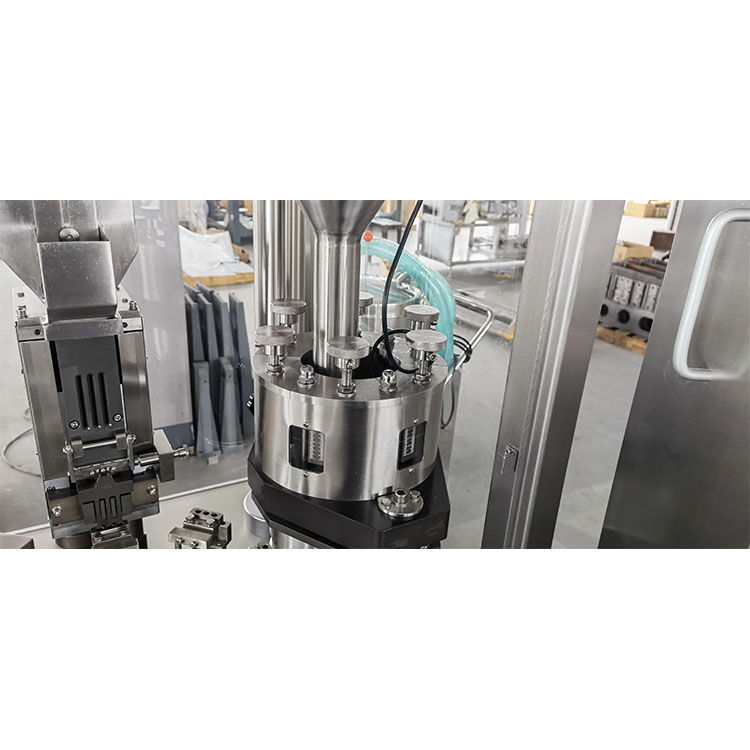

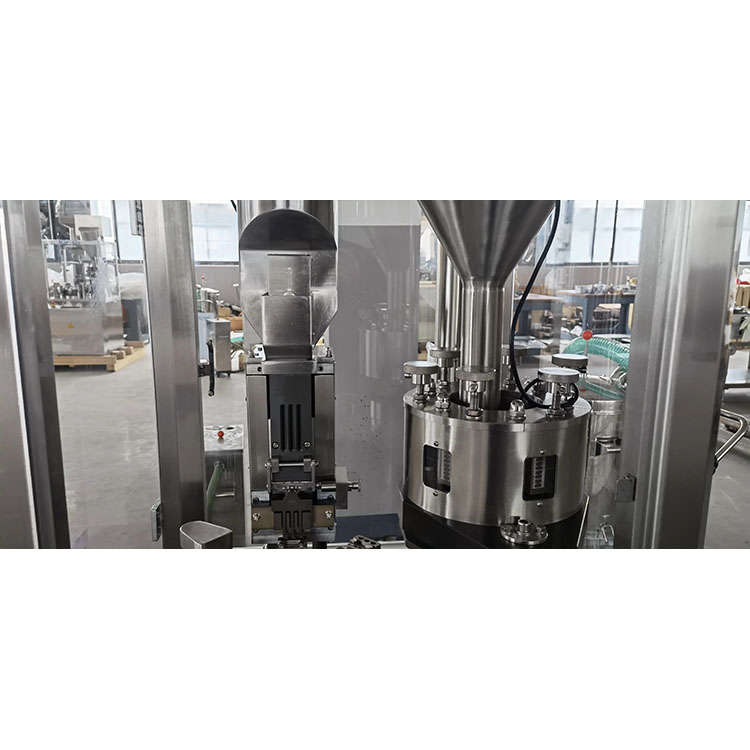

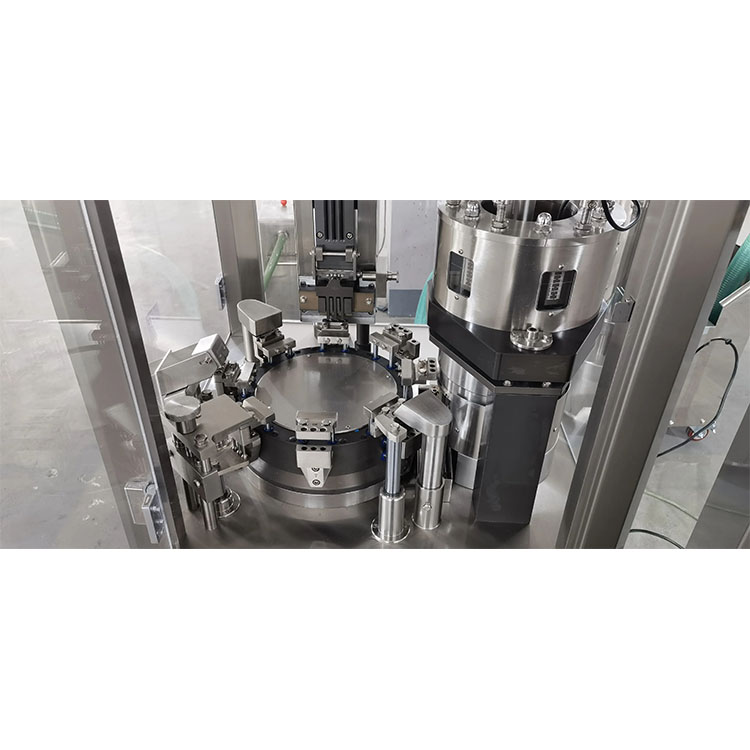

NJP-400 Automatic Hard Gelatin Capsule Filling Machine
NJP-400 Automatic Hard Gelatin Capsule Filling Machine
NJP-400 Automatic Hard Gelatin Capsule Filling Machine
NJP-400 Automatic Hard Gelatin Capsule Filling Machine
NJP-400 Automatic Hard Gelatin Capsule Filling Machine
NJP-400 Automatic Hard Gelatin Capsule Filling Machine

NJP-400 Automatic Hard Gelatin Capsule Filling Machine

1.Model : NJP-400.

2.Application: 00#~5# capsule, secure capsule A~E,lengthened capsule
3.Feature: Low cost, for small scale production, full automatic
4.Filling speed: Around 400pcs per min
5.Filling material: powder, pellet, granule

Contact us



1.NJP-400 capsule filling machine automatic, as a newly designed product, can replace the semi-automatic capsule filling machine. The machine has attracted many clients, since it can be applicable in many areas, such as hospitals, pharmaceutical research institutes, laboratories, colleges and universities, small pharmaceutical factories and health care plants.

2.NJP-400 automatic capsules filling machine is an intermittent motion and hole plate type full automatic capsule filler. It adopts optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, stably running etc. It can finish the following motion at the same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and die hole cleaning etc. It is the most ideal hard capsule filling equipment for the pharmaceutical and health food industry.



Main Features

1. The machine acquires such advantages as small volume, low energy consumption, convenient operation and cleaning.

2. Equipment standardization and component interchangeability enable molds to be changed quickly and accurately.

3. The design of bottom installation of the cam can increase the pressure atomizing oil pump, keep the cam groove lubricated, reduce wear and extend the service life of parts.

4. High-accuracy indexer is applied for slight vibration and operation noise lower than 80db. In addition, vacuum locating structure is used to achieve over 99.9% of the capsule probability.

5. The lower plane of dosing tray is the benchmark for three-dimensional adjustment, uniform gap, narrow filling quantity distribution and convenient cleaning.

6. HMI is applied for perfect functions. Besides, when material or capsules are lack or material channel is faulty, the machine can alarm and stop automatically. it can also count for every capsules and display the value of cumulative output.

Technical Specifications
No.of segment bores369
Capsule size000#~4#
Vaccum48m3/h -0.03~-0.05Mpa
Overall size(mm)760*780*1900840*820*1900870*940*2000

Our Sample

semi automatic capsule filling machine sample

Why Choose Us

1.16 years professional pharmaceutical machinery manufacturer and supplier.

2.3 Years Warranty, 14 Days Delivery, Factory Price.

3.5680 ㎡ factory, Own R&D Team.

4.Free desian service, free professional solutions.

5.Accept the non-standard customized products.

6.Passed Iso 9001. CE. sGs. Intetek certificates.

Company Information

Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.

Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.

Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.

Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.

capsule filler

Our certificate
